SVITAVA - Sink mixer, Chrome S503.5, RAV Slezák
Code: S303.0 S503.0 S303.5 S503.5 Choose variant
SUPERIOR WARRANTIES
We stand behind the quality of our products, which is why we provide a warranty of up to 10 years.
OLOMOUC HONESTY AND TRADITION
We are a Czech company with headquarters and production in Olomouc. We have been operating on the market since 2001.
OWN DEVELOPMENT AND PRODUCTION
We monitor quality in a special design department. We also offer custom production.
THE WHOLE WORLD KNOWS US
We export to three continents and are well-known to Czech and foreign customers.
Product detailed description

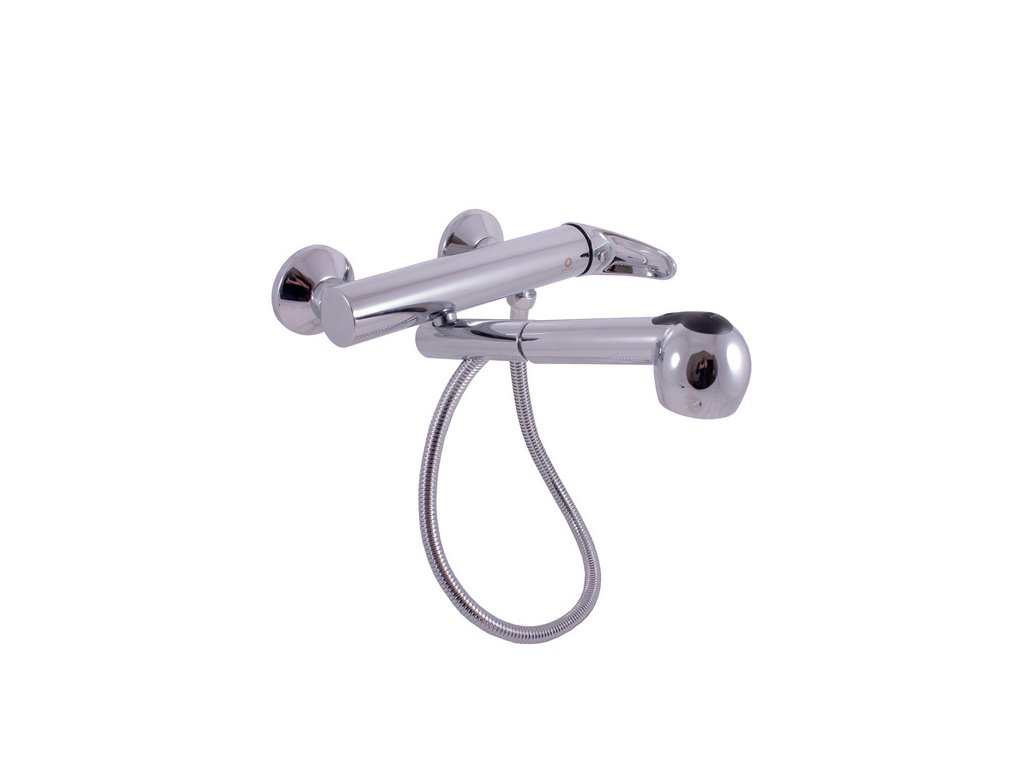

Wall mounted sink mixer with pull-out shower.
- This mixer is equipped with ceramic cartridge with diameter 35 mm KA3502
- included in the package of this mixer:
- PS0003 plastic anti-lime shower, which has 2 flow options. When you turn on the faucet, the classic current flows, when you switch the button on the shower, the current from the shower flows. You can switch back to the classic current only by stopping the water.
- Shower metal hose MH0701 - length 75 cm
You can choose from two different types of levers, namely:

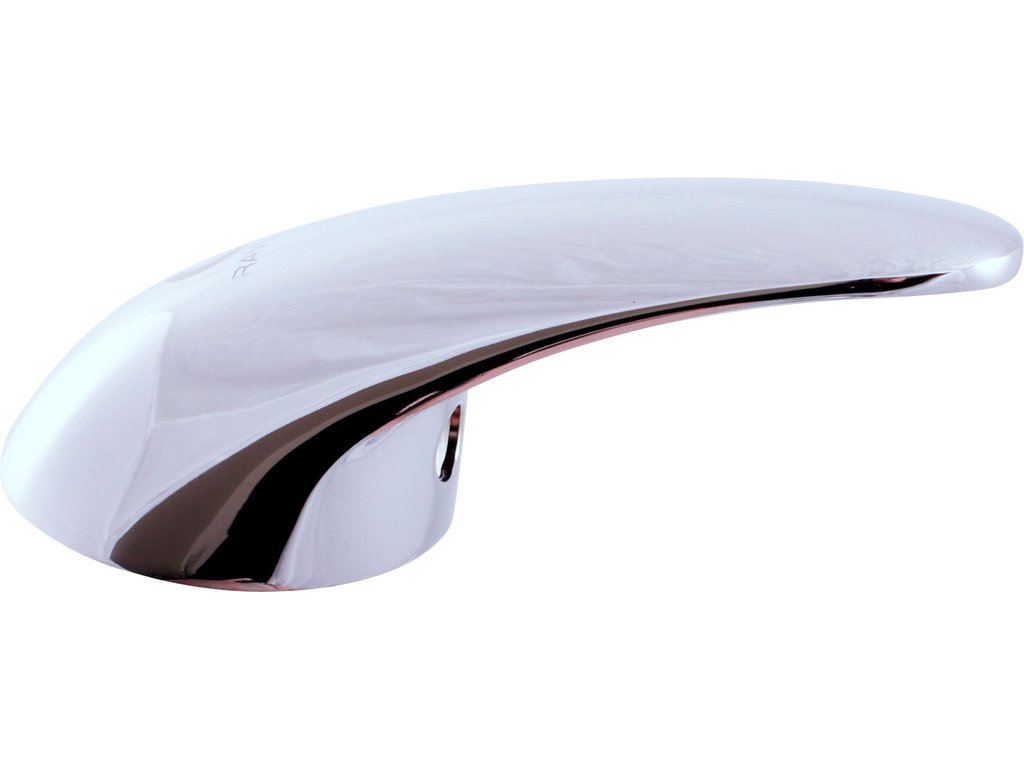

- Lever No. 3 (S303.0, S303.5)

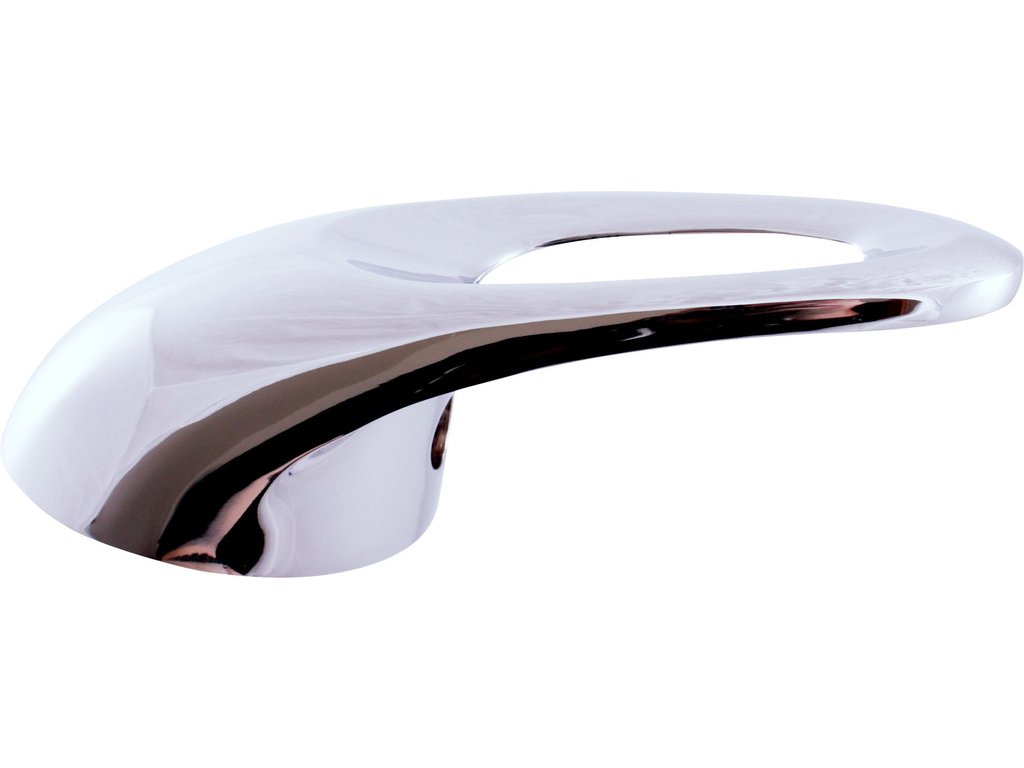

- Lever No. 5 (S503.0, S503.5)
- Photos of the levers can be found below the technical drawing. Please select the appropriate designation according to your choice when ordering.
Pitch type:
- "0" - battery spacing 100 mm (e.g. S503.0)
- "5" - battery spacing 150 mm (e.g. S503.5)
This mixer can be combined with basin, bath and shower mixers from the SVITAVA SLEZÁK - RAV series.
Warranty:
- 10 years for the tightness of the casting (body of the mixer).
- for cartridge and surface finish - 6 years
- for other parts according to the Civil Code
Additional parameters
| Category: | Sink faucets with shower |
|---|---|
| EAN: | Choose variant |
| Battery type: | Sink |
| Cartridge diameter: | 35mm KA3502 |
| Cartridge type: | Ceramic |
| Color: | Chrome |
| Control: | Lever |
| Dimension: | 100mm, 150mm |
| Fitting type: | Wall-mounted |
| Hand showers, number of functions: | 2 |
| Location: | Wall-mounted |
| Material: | Brass |
| Product type: | Faucets |
| Rotating arm (YES,NO): | Yes |
| Rotating orifice: | Yes |
| SERIES: | Svitava |
| Shower hose length, mm: | 700 |
| Shower hose type: | metal |
| Shower size hand shower, mm: | ⌀48 |
| Surface treatment: | Chrome |
| Tightness guarantee: | 10 years |
| with shower, without shower: | with shower |
| Net weight: | 3.44 |
| Gross weight: | 3.75 |
| Height: | 440 |
| Width: | 181 |
| Depth: | 103 |
| Customs code: | 84818011 |
